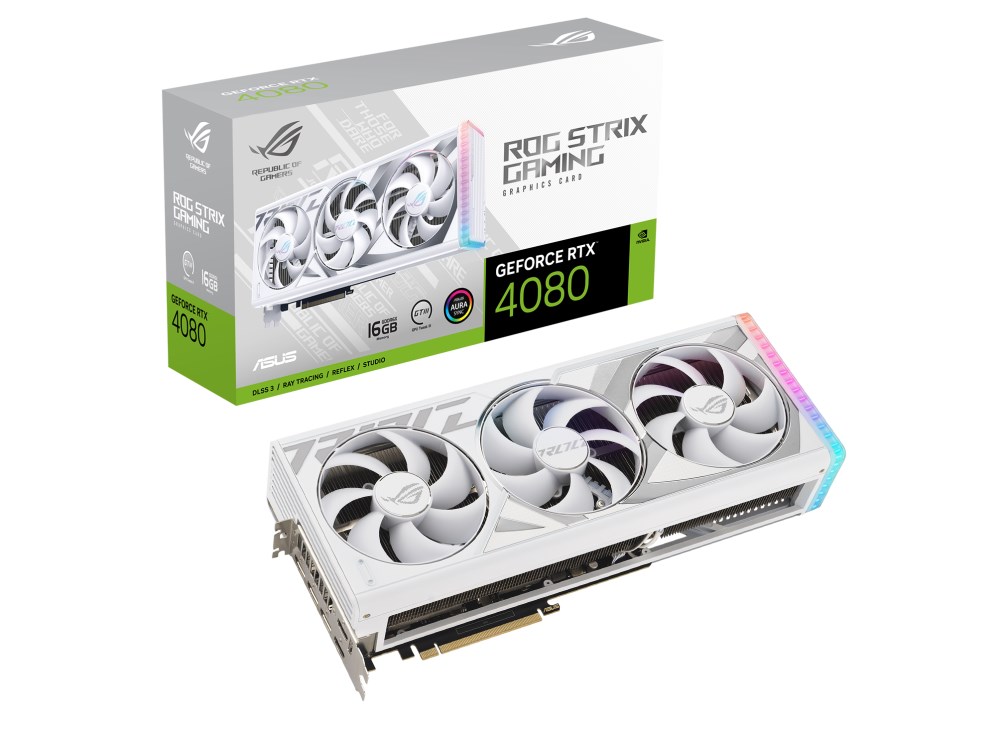

ASUS GeForce ROG Strix RTX 4080 16GB GDDR6X White Edition

ROG Strix GeForce RTX 4080 16GB GDDR6X White Edition

ROG Strix GeForce RTX™ 4080 16GB GDDR6X White Edition with DLSS 3 and chart-topping thermal performance.

• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Axial-tech fans scaled up for 23% more airflow
• New patented vapor chamber with milled heatspreader for lower GPU temps
• 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
• Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
• Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Graphic Engine

NVIDIA GeForce RTX™ 4080

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

16GB GDDR6X

Engine Clock

OC mode: 2535 MHz
Default mode: 2505 MHz (Boost Clock)

CUDA Core

9728

Memory Speed

22.4 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Collection Card?
1 x Speedsetup Manual?
1 x Adapter Cable? (1 to 3)
1 x ROG White Graphics Card Holder
1 x ROG White Velcro Hook & Loop
1 x Thank you Card
1 x ROG Ring

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

357.6 x 149.3 x 70.1mm

Recommended PSU

750W

Power Connectors

1 x 16-pin

Slot

3.5 Slot

AURA SYNC

ARGB

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
