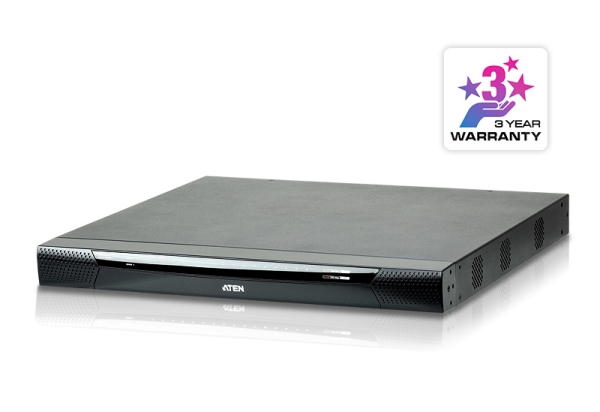

ATEN KN4116VA-AX-G 16 Port KVM over IP SW-1 Local /4 remote USER ACCESS W/PW CABLE EU

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN4116VA features superior video quality (HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.

New KN Series Exclusive:
•High grade security – supports FIPS 140-2 level 1 security standards
•Extreme virtual media speed – 2 x faster virtual media transmission speed
•Advanced FPGA graphics processor – with an HD resolutions of 1920 x 1200

With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers.

KN series devices can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.

To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.

Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID.

ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services possible.



Features:

New KN Series Exclusive
High grade security – supports FIPS 140-2 level 1 security standards
Extreme virtual media speed – 2 x faster virtual media transmission speed
Advanced FPGA graphics processor – with an HD resolution of 1920 x 1200
Simultaneously share one local console and four independent connections to the attached servers

Hardware

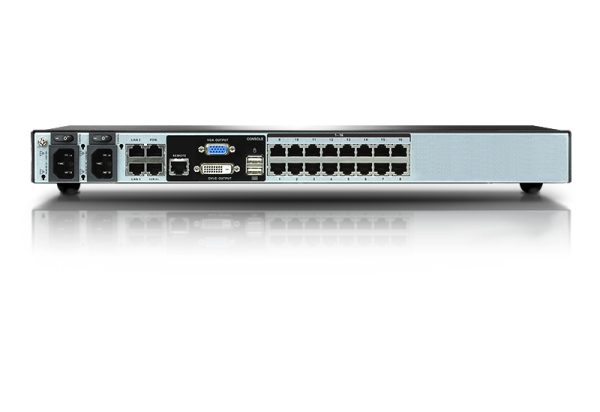

High port density – RJ-45 connectors and Cat 5e/6 cable for up to 16 ports

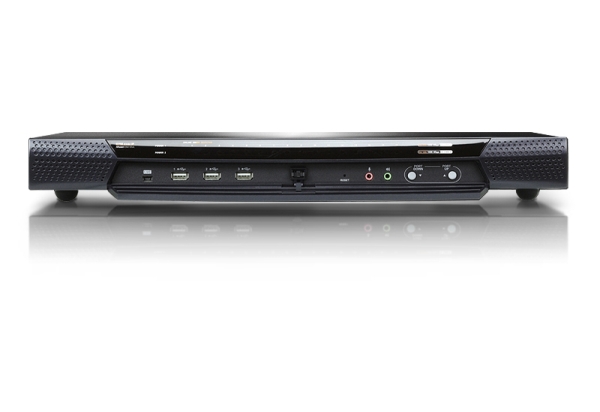

Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
Four separate buses for remote KVM over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
Blade server support
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Dual Power Supply
High video resolution – up to 1920 x 1200 @ 60Hz with 24-bit color depth at the switch’s local console and on remote session displays
Monitor and control up up to 16 computers on a single level, or control up to 256 computers in a cascade*
* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A

Management
Up to 64 user accounts – up to 32 users simultaneously share the control
Green IT-Fan speed varies according to temperature
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Firmware upgradeable
Out-of-Band Access-Modem dial-in/dial out/dial back support
Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ATEN Altusen CC2000 Management Software
Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
IPv6 capable

Ease-to-Use Interface
ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
Full-screen or sizable and scalable Virtual Remote Desktop
Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization

Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports SSL 128-bit data encryption and RSA 2048-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Support for IP/MAC Filter
Configurable user and group permissions for server access and control
Automated CSR creation utility and third party CA certificate authentication

Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images

Virtual Remote Desktop
Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
Mouse DynaSync-automatically synchronizes the local and remote mouse movements
Exit Macros support
On-screen keyboard with multilanguage support
BIOS-level access for trouble shooting



Package Contents
1x KN4116VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x LIN2-418K-E12G Power Cords
1x Mounting Kit
2x 0X12-0017-301G Lok-U-Plugs
1x 0X12-0017-401G Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions
