ASUS dock DC301

Model
ASUS Triple Display USB-C Dock Duo DC301

Category
Dock

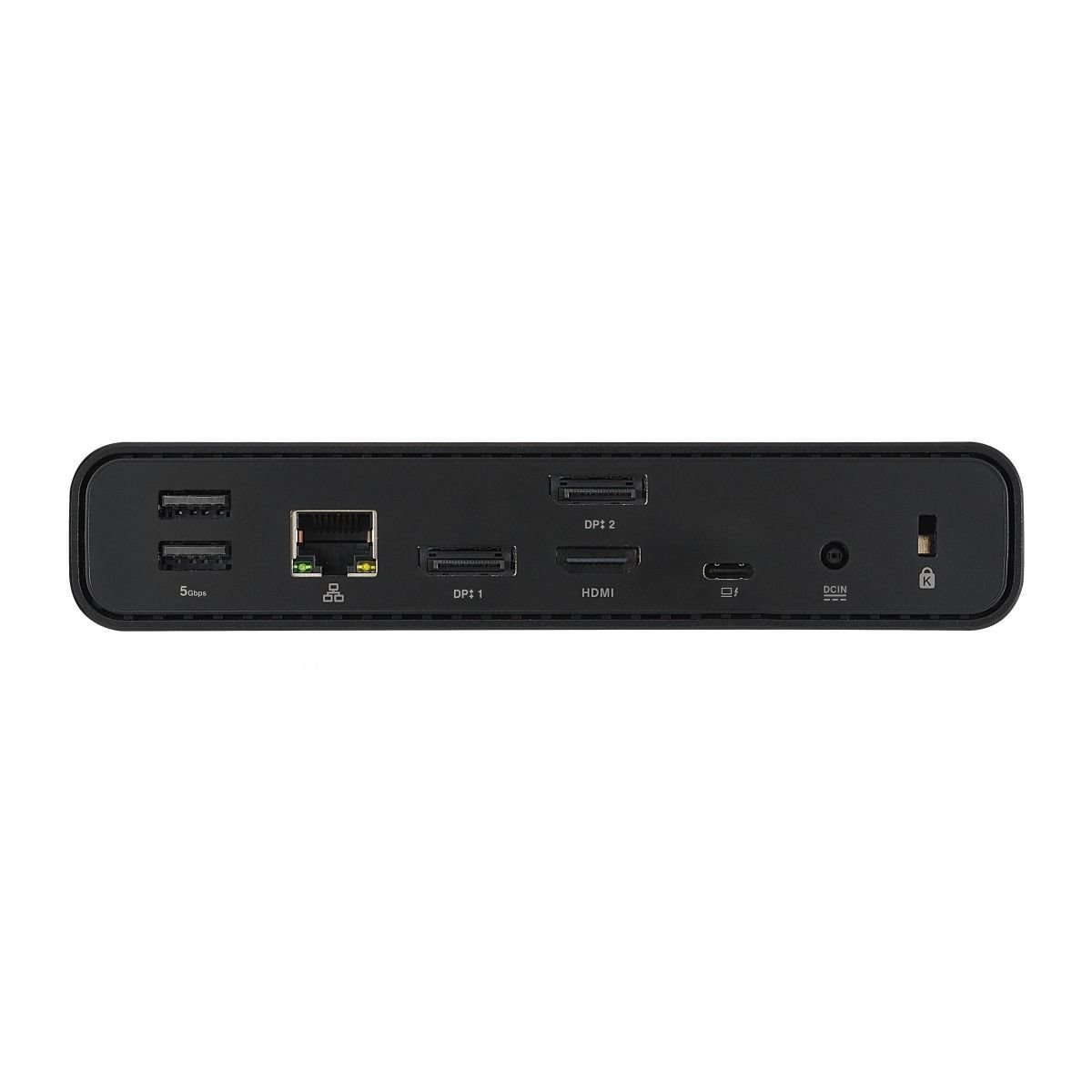

I/O Ports
1 x RJ-45 (Gigabit) port
2 x USB 3.2 Gen1 Type-A ports (5Gbps)
1 x 3.5mm audio combo jack
1 x USB 3.2 Gen2 Type-A port (10Gbps/5.0V2.4A)
1 x USB 3.2 Gen2 Type-C® port (10Gbps/5.0V 3.0A)
1 x SD card reader
1 x USB 3.2 Gen2 Type-C® port (DP1.4 only)
1 x HDMI™ 2.0 port
1x Kensington lock
1x Power button with indicator LED
1x DC jack(4.5 phi)
2 x DisplayPort 1.4 port

Video Resolution
HDMI Single Ext. Output: 3840×2160@60Hz

Display Port Single Ext. Output: 3840×2160@60Hz

OS Support
Windows® 10 or above
Mac OS 13 or later

Power Adapter
150W DC20.0V / 7.5A

Secutiry
Kensington lock

Cable Length
100cm

Color
Black

Weight
Dock:514g±5g
Stand:95g±5g

Dimensions
160 x 80 x 32 mm

Material
Plastic, Metal

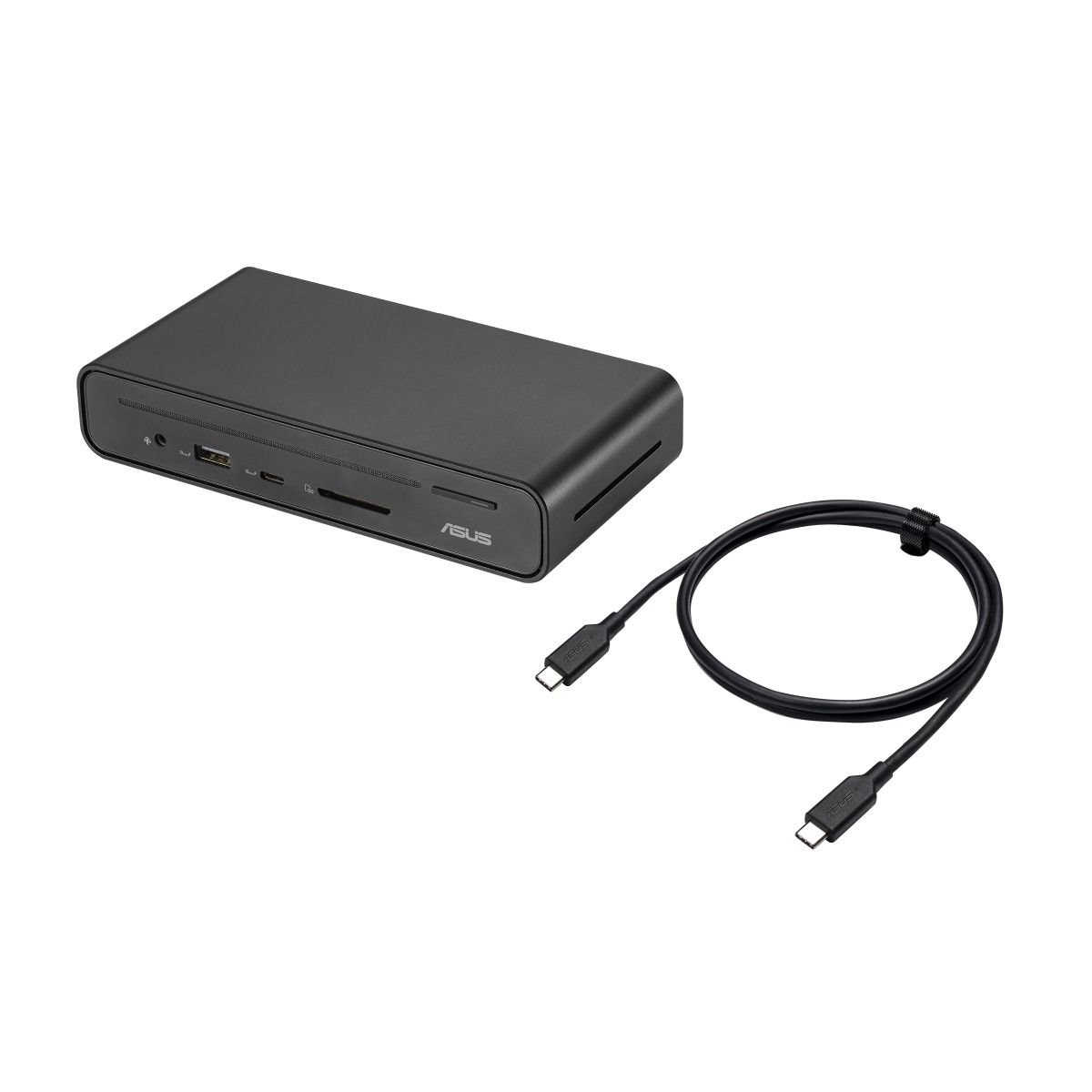

Package Contents
ASUS Triple Display USB-C Dock Duo, 1M USB-C cable,docking stand, 150W adapter, power cord, user manual, warranty card

Power button
For ExperBook B series,
One key operation (Press the power-button to wake up your laptop with multiple monitors during standby mode).
For Other Windows Notebook (ASUS and Non-ASUS),
Press the power-button can turn on/off LED and open/shot down DC300’sdisplay signal.
Indicator LEDs

For ExperBook B series,
Please refer manual for "Indicator LEDs" actions.
