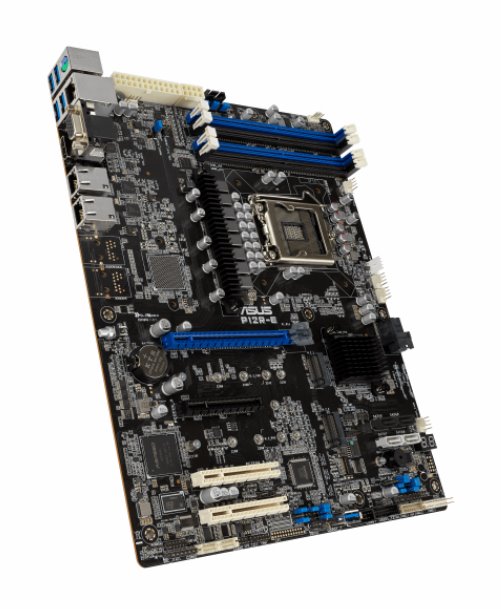

ASUS P12R-E/10G-2T

Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
Dual Intel I210AT Gigabit Ethernet with teaming support
Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
HDMI 1.4 support for high-resolution display maintenance and monitoring
Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

Processor / System Bus

1 x Socket LGA1200
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic

Intel® C256 Chipset
Memory

Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB
* Refer to support page for more information
Expansion Slots

Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied
Form Factor

ATX (12"x9.6", 305mm x 244mm)
ASUS Features

FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center
Storage

Storage Controller :
8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *1

SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking

2 x Intel® I210AT + 1 x Mgmt LAN
Graphic

Aspeed AST2600 with 64MB VRAM *2
On Board I/O

1 x VGA Header*2
1 x HDMI*3
1 x TPM header
1 x COM port
1 x PS/2 KB/MS port
1 x Onboard header for optional management card
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
2 x USB3.2 Gen2 ports
2 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header
Back I/O Ports

2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI Port (useable only with iGPU)
1 x VGA Port (VGA from BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
Management Solution

ASUS Control Center Enterprise (Optional)
ASMB10-iKVM for KVM-over-Internet(Optional)
Weight

Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG
Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG
Environment

Operation temperature: 10? ~ 50?*
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)

*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Accessories

Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
4 x SATA 6G cables
1 x Plate for LGA1200
Bulk Pack (10-in-1)
1 x Support CD
1 x I/O shield
1 x Plate for LGA1200
Monitoring

CPU Temperature
Fan RPM
Note

*1.Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal
*2.VGA from BMC
*3.HDMI (useable only with iGPU)
