DELL PowerVault TL1000/LTO6

Automated backup delivers true value

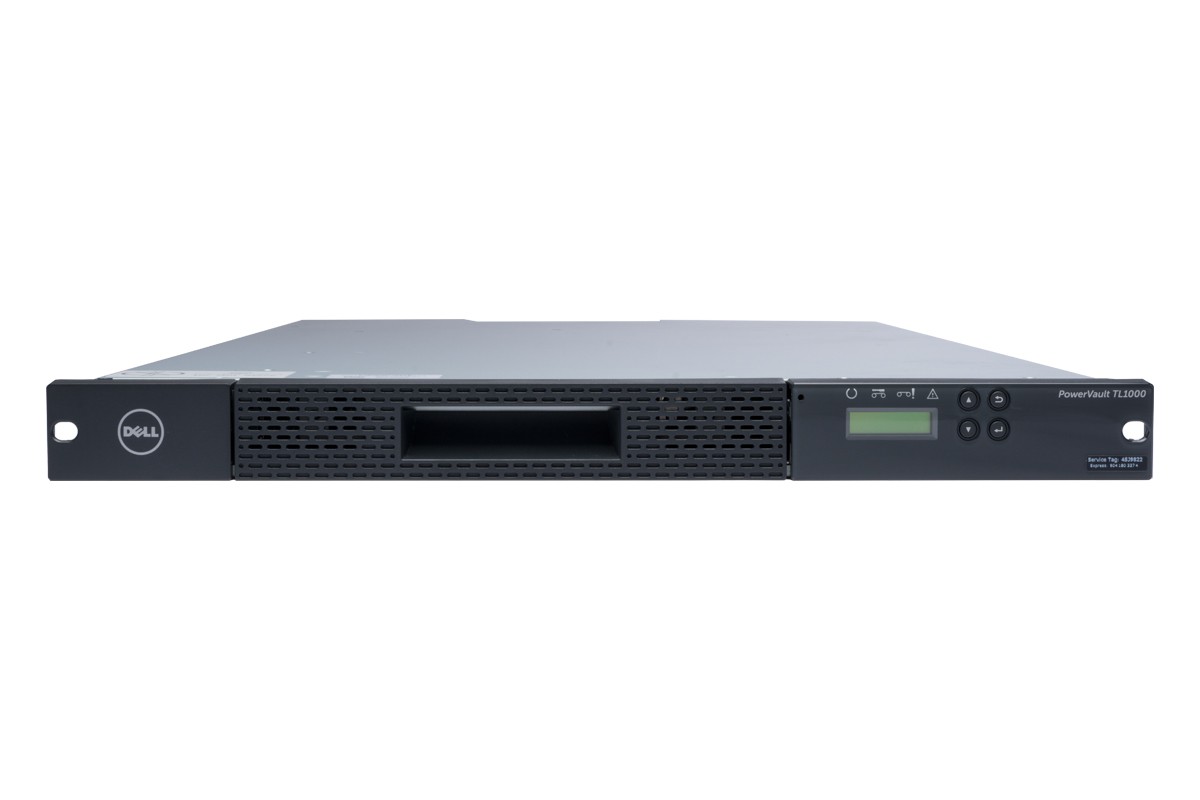

The Dell™ PowerVault™ TL1000 tape autoloader is designed to maximize the storage capacity available in a space-saving 1U rack-mount chassis, making it ideal for consolidating multiple or remote application servers for unattended, automated backup. The affordable PowerVault TL1000 delivers features found previously only in high-end libraries. A simple design allows you to manage up to nine total cartridges. Plus, you have a choice of equipping the autoloader with one LTO-7, LTO-6, LTO-5 or LTO-4 tape drive.


Feature Technical Specification
Encryption Library-managed encryption available with LTO-6 and later generation drives at point-of-sale only
Form factor 1U
Height 1.73 in (44 mm)
Width (chassis/bezel) 17.52 in/19.02 in (445 mm/483 mm)
Length (depth) 33.46 in (850 mm)
Weight 28.66 lb (13 kg)
Orientation Horizontal only
Configurations Rack-mount standard
Supported tape drive technologies LTO-7, LTO-6, LTO-5, LTO-4
Barcode reader Standard
Code updates RMU or host bus for drives
RMU only for library code updates
Partitioning support No

Network interface
ADI T-10
Ethernet RJ-45
Serial RJ-11
IPv6 Phase 1 & 2 Ready and DoD APL

User interface
Operator Control Panel
Located on the front of the TL1000 tape library. Use the LCD panel to check system status, run diagnostics, check and set configurations, verify drive operations, run an inventory and manage the system.
Remote Web Management (RMU)
Access the web-based administration through a 10/100 BASE-T connection and any standard web browser. Use RMU to check system status, run diagnostics, view system logs, check and set configurations, verify drive operations, run an inventory, manage the system and upgrade drive and library firmware.
