Delock grafická karta do Mini PCIe slotu + PCI záslepka s DVI-I konektorem

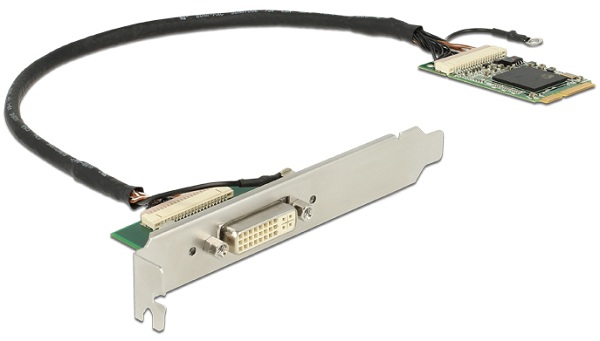

This Mini PCIe adapter by Delock expands the PC by one DVI output port. To this interface it can be connected e.g. a DVI display. By the help of the enclosed slot bracket the DVI port can be lead out.

Specification
• Connector:
external:
*     1 x DVI-I (Dual Link) 24+5 female
internal:
*     1 x Mini PCI Express, Rev. 1.1
*     1 x 20 pin connector
• DVI port with screw nuts
• Interface: PCI Express
• Form factor: MiniPCIe full size
• Chipset: SM750
• Graphic memory: 16 MB DDR SDRAM
• Resolution up to 1280 x 1024 @ 60 Hz
• Supports simultaneous output to two displays
• Current consumption: ca. 740 mA
• MTBF: 1.425.435 hours
• Operating temperature: -20 °C ~ 70 °C
• Storage temperature: -20 °C ~ 85 °C
• Humidity: 5 ~ 95 %
• Cable length incl. connector: ca. 30 cm

System requirements
• Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64
• PC with one free Mini PCI Express slot

Package content
• Mini PCIe module
• DVI adapter board
• Connection cable, length ca. 30 cm
• Slot bracket
• 2 x fixing screw
• Driver CD
• User manual

Package
• Box
