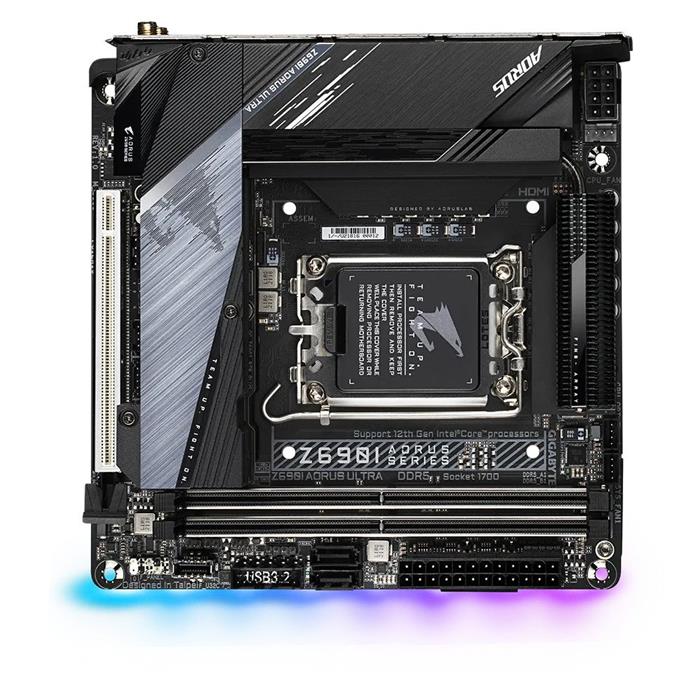

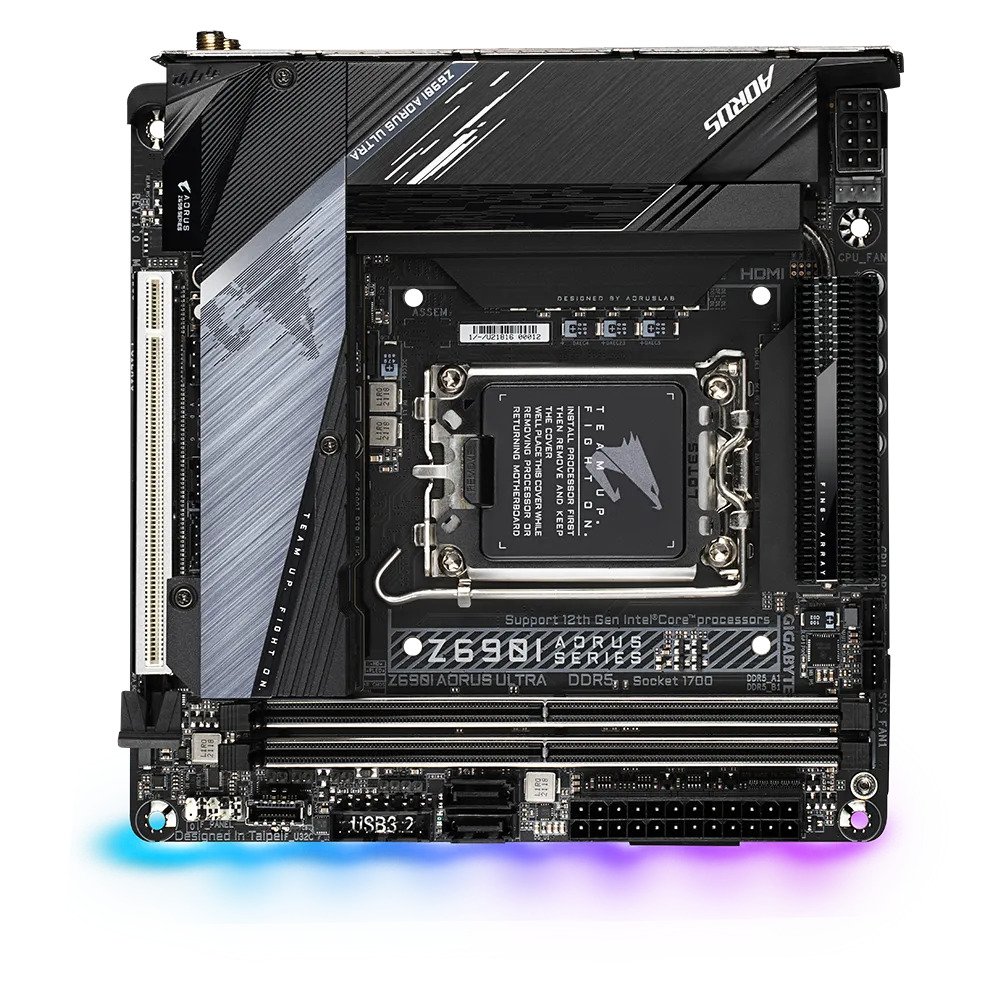

Gigabyte Z690I AORUS ULTRA

Chipset: Intel Z690 Express Chipset Rozměrový formát: Mini-ITX (17.0cm x 17.0cm) Podpora pro procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA 1700 Pozice na paměti: 2 x DDR DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz Max.velikost operační paměti: 64 GB Podpora pro paměti typu: XMP, ECC Grafická karta: Intel HD Graphics *1 x HDMI 2.1 port - 4096x2160@60 Hz *1 x DisplayPort 1.4 port - 5120x2160@60 Hz Zvuková karta: Realtek ALC4080 CODEC Síťová karta: *Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *WIFI a, b, g, n, ac, ax *Bluetooth 5.2 Rozšiřující sloty: 1 x PCI Express x16 slot, running at x16 (PCI Express 5.0 standard) RAID řadič: RAID 0, RAID 1 SATA: 2 x SATA 6Gb/s connectors M.2: 2 x M.2 Socket 3 connectors(M2A_CPU/M2P_SB) USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *1 x USB 2.0/1.1 header *Externí: *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *3 x USB 3.2 Gen 2 Type-A ports (red) *2 x USB 3.2 Gen 1 ports *2 x USB 2.0/1.1 ports Interní porty: *1 x 8-pin ATX 12V power connector *1 x external power connector *1 x CPU fan header *1 x water cooling CPU fan header *2 x system fan headers(SYS_FAN1/SYS_FAN2) *1 x addressable LED strip header *1 x RGB LED strip header *2 x M.2 Socket 3 connectors(M2A_CPU/M2P_SB) *2 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header(routed from the adapter card on the rear panel) *1 x speaker header *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *1 x USB 2.0/1.1 header *1 x reset button *1 x reset jumper *1 x Clear CMOS jumper Externí porty: *2 x SMA antenna connectors (2T2R) *1 x DisplayPort *1 x HDMI port *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *3 x USB 3.2 Gen 2 Type-A ports (red) *2 x USB 3.2 Gen 1 ports *2 x USB 2.0/1.1 ports *1 x Q-Flash Plus button *1 x RJ-45 port *2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/Z690I-AORUS-ULTRA-rev-10#kf
