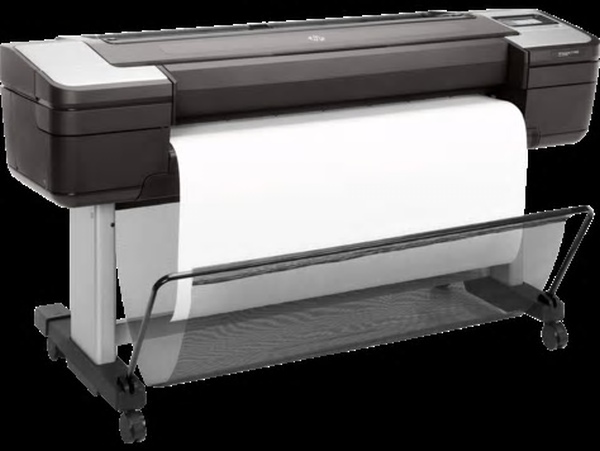

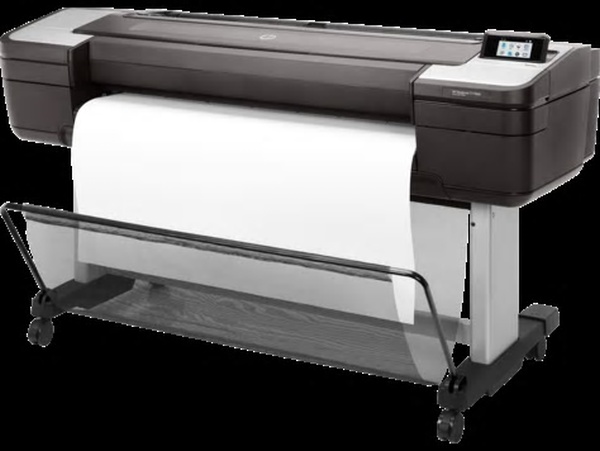

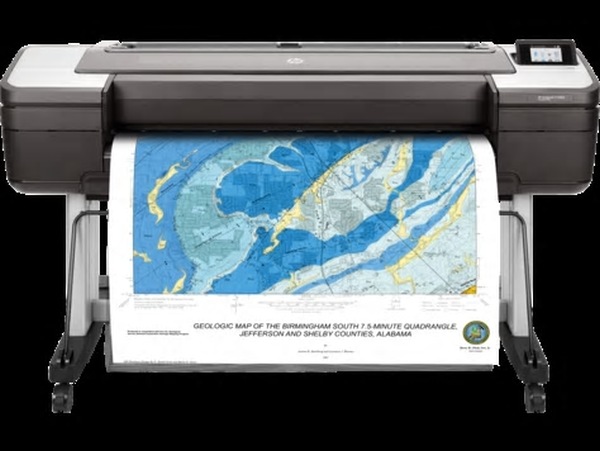

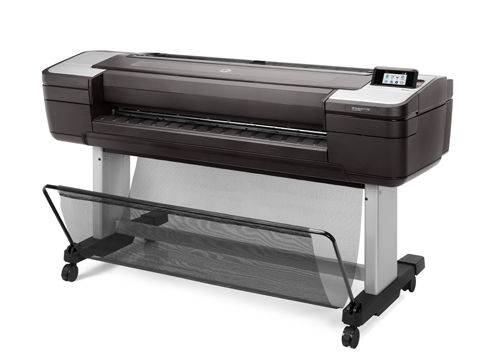

HP DesignJet T1700dr 44-in Printer

Model size 1118 mm Functions Print

Speed specifications
Print speed line drawing (economode, D plain paper) 116 pages per hour[1]

Memory specifications

Memory 128 GB (virtual)[3]
Internal Storage 500 GB Self-Encrypted Disk (SED) hard disk

Technical specifications
Print quality (best)Color: Up to 2400 x 1200 optimised dpi
Number of print cartridges 6 (cyan, magenta, yellow, photo black, matte black, grey) Ink types Dye-based (C
M
Y
PK
G); Pigment-based (MK)
Line accuracy ±0.1%[1]
Maximum optical density (black) 2.15 maximum black optical density (6 L*min)

Paper handling
Finished output handling Sheet feed
Two automatic roll feeds
Automatic roll-switching
Media bin
Automatic cutter
Media types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)
Media sizes, custom 210 x 279 to 1118 x 1676 mm
Media thickness Up to 0.8 mm (31.5 mil)

Connectivity
HP ePrint capability Yes
Connectivity, standard Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab)
USB Type-A host port
Print languages HP-GL/2, TIFF, JPEG, URF, CALS G4

Power and operating requirements
Power consumption < 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
Operating temperature range 5 to 40oC
Operating humidity range 20 to 80% RH

Dimensions and weight
Dimensions (W x D x H) 1802 x 695 x 998 mm (70.9 x 27.4 x 39.3 in)
Weight 74 kg (163 lb)
