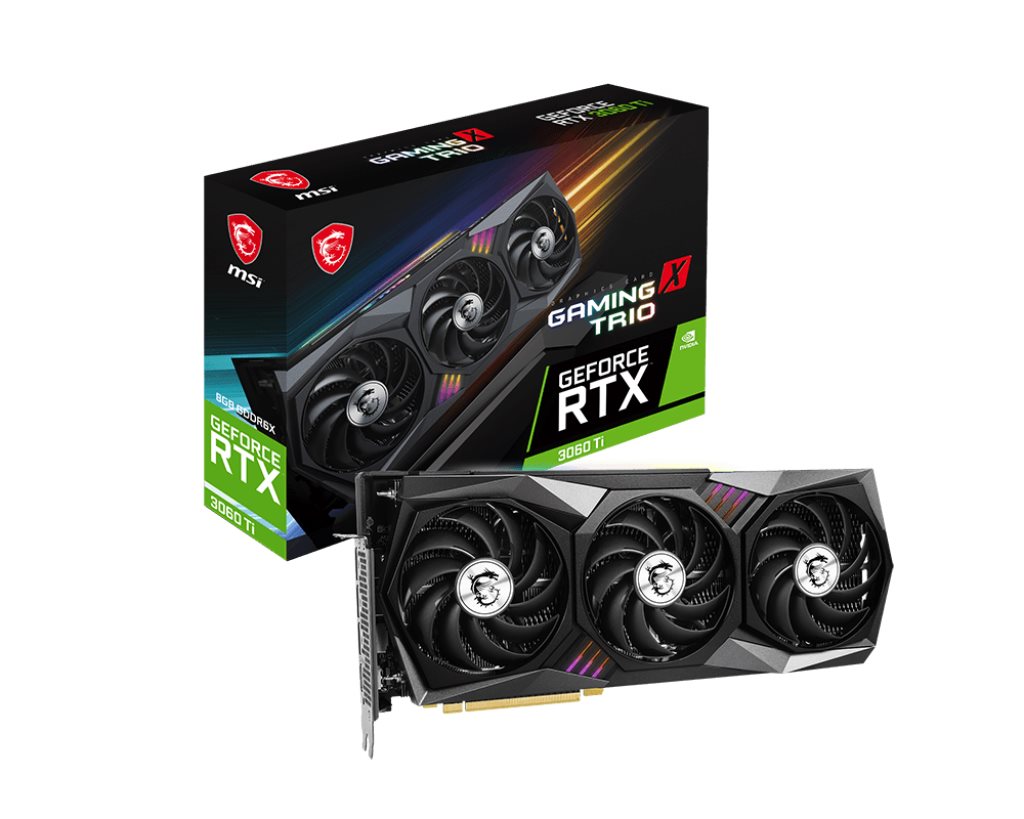

MSI GeForce RTX 3060 Ti GAMING X TRIO 8GD6X

GeForce RTX™ 3060 Ti GAMING X TRIO 8GD6X

The GeForce RTX™ 3060 Ti lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6X memory.

Boost Clock / Memory Speed

• 1845 MHz / 19 Gbps
• 8GB GDDR6X
• DisplayPort x 3 (v1.4a)
• HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

TRI FROZR 2 Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

• Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

MODEL NAME

GeForce RTX™ 3060 Ti GAMING X TRIO 8GD6X

GRAPHICS PROCESSING UNIT

NVIDIA GeForce RTX™ 3060 Ti GDDR6X

INTERFACE

PCI Express Gen 4

CORE CLOCKS

Boost: 1845 MHz

CUDA CORES

4864 Units

MEMORY SPEED

19 Gbps

MEMORY

8GB GDDR6X

MEMORY BUS

256-bit

OUTPUT

DisplayPort x 3 (v1.4a) / HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

HDCP SUPPORT

Y

POWER CONSUMPTION

265W

POWER CONNECTORS

8-pin x2

RECOMMENDED PSU

600W

CARD DIMENSION (MM)

323 x 140 x 56mm

WEIGHT (CARD / PACKAGE)

1515g / 2343g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

VR READY

Y

G-SYNC TECHNOLOGY

Y

ADAPTIVE VERTICAL SYNC

Y

DIGITAL MAXIMUM RESOLUTION

7680x4320
