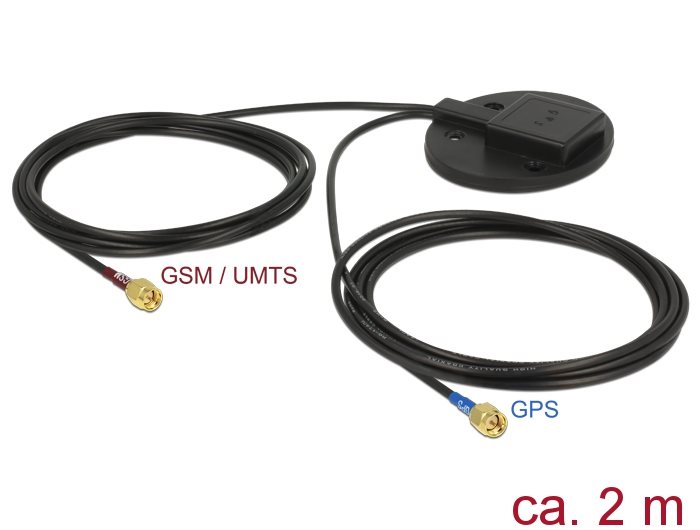

Navilock Multiband GPS UMTS GSM LTE SMA 2 - 3 dBi 2 x 2 m RG-174 Antenna omnidirectional mounting plate

This Navilock multi-band antenna has two physically separated transmitting and receiving units. The GPS patch antenna receives the signals of the Global Navigation Satellite System GPS. One PIFA antenna for GSM / UMTS / LTE is responsible for transmitting and receiving in these ranges.

Specifikace
• Connectors: 2 x SMA plug
• GPS:
Frequency range:
        GPS: L1, 1.57542 GHz
Antenna gain: 3 dBi
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Gain: 28 dBi
Noise figure: 1.5 dB
Voltage: 2.2 - 5.0 V
Current: 5 - 15 mA
Impedance: 50 Ohm
• LTE GSM UMTS:
Frequency range:
        0.824 - 0.960 GHz
        1.710 - 2.170 GHz
LTE Band: 1-6/ 8-10/ 19/ 25/ 33-37/ 39
GSM / UMTS / ZigBee / Z-Wave
Antenna gain: 2 dBi
Impedance: 50 Ohm
Polarisation: linear
VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Protection class: none
• Screw assembly
• Colour: black
• Dimension (OxH): ca. 77 x 14 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation:
    1.5 dBi @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connectors: ca. 2 m

Systémové požadavky
• Device with free SMA connectors

Obsah balení
• Multiband Antenne

Balení
• Poly bag
