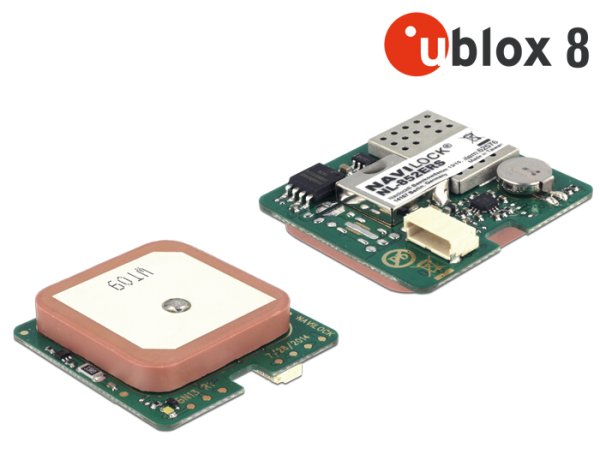

Navilock NL-852ERS PPS u-blox 8 Multi GNSS Engine Module

GNSS modules are fully assembled receiver with patch antenna, backup battery etc .. This version uses RS232.

Specifikace
• Connector: WTB serial RS232
• u-blox 8 UBX-M8030-KT chipset
• Frequency:
 GPS: L1, 1575.4200 MHz
 GLONASS: L1, 1602 (k x 0,5625) MHz
 BEIDOU COMPASS: B1, 1561.0980 MHz
 GALILEO E1, 1575.4200 MHz
 QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
 SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• USB specification 2.0
• Auto Baud Rate up to 115200 bps
• Update rate:
 single GNSS: 18 Hz (e.g. GPS solo)
 multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. –167 dBm
• LED-indicator for GPS-status
• Operating temperature:    -40 °C ~ 85 °C without battery
                                       -20 °C ~ 60 °C with battery
• Power supply: 5 Volt
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
 2 m CEP with SBAS
• Dimension (LxWxH): ca. 30 x30 x 7.90 mm


Systémové požadavky
• Device with free RS232 input

Obsah balení
• GNSS Engine Module
• Navilock Support CD

Balení
• Kartonová krabice
