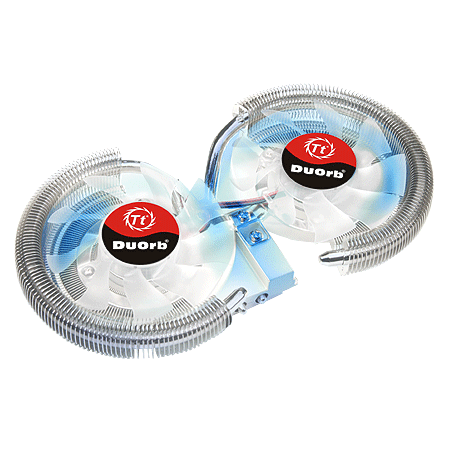

THERMALTAKE CL-G0116 DuOrb AX, chladič VGA

Innovative DuOrb series design
Effective cooling construction: 2 copper heatpipes penetrating aluminum fins
 with copper base
ScurveTM should be small letter on upper right hand corner
Dual-Flow design not only dissipates the heat of GPU but cools down surrounding
 temperature of VGA card

Innovative DuOrb Series Design
- Dual-Orb and Dual-Heatpipe Design
 bringing you the whole new visual experience
- ScurveTM Blade Fan
 design with blue LED lights
- Two 80mm unique fan for quietness, 21 dBA.


Superb Cooling Performance Structure
- Effective Cooling Construction:
 copper heatpipes, copper base, and aluminum fins
 generating efficient cooling performance
- Double-Sided Radiant Heatpipes Penetrating Fins
 transmitting heat evenly and efficiently
- Mirror Coating Copper Base
 to guarantee perfect contact between GPU and DuOrb
- VGA Memory & VRM Chip Heatsinks
 providing the complete thermal solution for VGA cooling

Smart Thermal Management
- Dual- Flow Design
 further utilizes air flow not just to dissipates the heat of GPU but to cool
 down surrounding temperature of VGA card

P/N  CL-G0116
Compatibility nVidia 9600 GT
8800 GTX/GTS/GT
8600 GTS/GT
7900 GTX/GT/GS
7800 GTX/GT/GS
7600 GT/GS
6800 GT/GS

ATi HD 4850
HD 3870
HD 3850
X1950 PRO/XTX/XT
X1900 GT/XTX/XT
X1800 GTO/XL/XT
Dimension 180.5(L) x 98.5(W) x 34.5(H) mm
Material Aluminum fins
copper heatpipes
Copper base
Heatpipe  o 6 mm x 2pcs
Fan Dimension  o 80 x 15 mm x 2pcs
Rated Voltage  12V
Started Voltage  7 V
Max.Air Flow  23.8 CFM
Max. Air Pressure  2.9 mmH2O
Fan Speed  2500 RPM
Noise  21 dBA
Life Expectation  50,000 hrs
Connector  4 pin
Weight  250g
Memory Heatsink  Aluminum/ 13 pcs
VRM Heatsink  Aluminum/ 4 pcs
