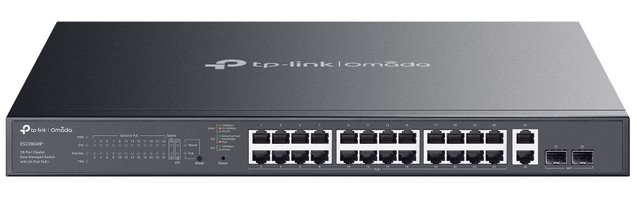

TP-Link Omada ES228GMP

-    26× 10/100/1000Mb/s RJ45 portů (24× PoE+ kompatibilní s 802.3af/at)
-    2× gigabitové SFP sloty
-    Napájecí rozpočet 384 W, až 30 W na každý PoE port*
-    Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace pro další funkce
-    Centralizovaná cloudová správa přes web nebo aplikaci Omada†
-    Až 250m PoE**, QoS?, automatické obnovení PoE‡ a izolace portů pro spolehlivou dohledovou síť
-    Automatická prevence smyček, VLAN a IGMP Snooping
-    Odolné kovové provedení a možnost montáže do racku

SPECIFIKACE:

HARDWARE FEATURES
Interface
• 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 2
Installation Rackmountable

Power Supply 100–240V AC, 50/60Hz
PoE Ports (RJ45)
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 24 ports
• PoE Budget: 384W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
Surge Protection ±6kV

PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.67 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB

SOFTWARE FEATURES
Quality of Service
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†

OTHERS
Certification FCC, CE, RoHS
Package Content
• ES228GMP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
